CSCI 151 - Lab 5
Generic Stacks and Queues


Overview

In this lab, we will implement generic version of the Stack and Queue data types within the context of searching a maze.

Materials

Setup

  1. Download the skeleton for this project.
  2. Unpack the code into a new Eclipse Java project.

Description

In Lab 4, we explored searching a maze for a goal using a stack to organize our potential Trails. The stack allowed us to search in a depth-first search manner. In other words, we would explore down a trail as far as possible, and backtracked if we reached a dead end in our journey, because we were search the youngest potential trail next.

But there are other ways to search. We now want to investigate a breadth-first search approach, where the oldest potential trail is expanded next.

In this lab, you will create the necessary data structures to search a maze with either a depth-first search or breadth-first search.

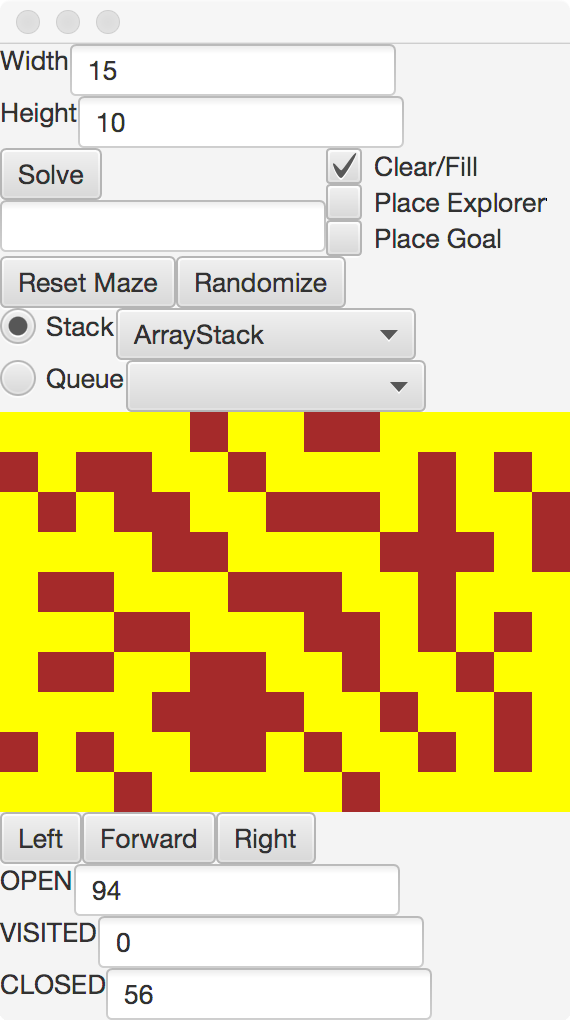

To start, run the code in MazeApp. After you click on "Randomize", you should see the GUI layout here.

There are a few new pieces to this GUI. First, you will see a way for you to select a search strategy, either a Stack or a Queue. For each strategy, you will see a list of implementations available. To start, you will find the code for the ArrayStack included in the maze.models.searchers directory.

Second, you will notice that there are statistics in the lower portion of the GUI, recording the number

Third, there is an error box underneath the Solve button, to report when things go wrong with the underlying implementations. It will also report the number of steps taken when a solution trail is found through searching.

This project contains a working implementation of the Maze Lab and Project, so you do not have to revise any of your earlier code to add this functionality.

Step 1 - ListNode<E>

To implement the generic version of a Stack and Queue with nodes, your first task is to reimplement the Node class to be Generic. All of your implementations for this lab will be located in the maze.models.searchers directory.

Step 1.1 - Implementation

You will first need to create a file called ListNode.java that implements the Node class we discussed. It should have an E value, and a ListNode next reference as components, along with get and set methods for the value and next fields.

While the name of the file is ListNode.java, the name of your class should be ListNode<E>.

Step 2 - ListStack<E>

We next revise your earlier ListIntStack code to be a generic implementation.

Step 2.1 - Implementation

Write a class called ListStack<E>. This will need to implement the Stack<E> interface, and have at least a ListNode<E> called top as a field.

Note that there is an additional method to implement. For ListNode implementations, the capacity method should return the size.

Step 2.2 - Testing

Run the ListStackTest suite, and ensure your above methods are passing these tests.

Step 2.3 - GUI

Now, run the MazeApp class, and test out your code with the GUI. You should be able to select between the ArrayStack and ListStack implementations.

Step 3 - ListQueue<E>

Now that you are comfortable with generic implementations, write a Queue using the ListNode<E> from Step 1.

Step 3.1 - Implementation

Your implementation will have two fields as discussed in class, a head and a tail. Create a new Class, implementing the Queue<E> interface and completing all of the necessary methods.

While the name of the file is ListQueue.java, the name of your class should be ListQueue<E>.

Step 3.2 - Testing

Test out your code with the ListQueueTest suite

Step 3.3 - GUI

Run the GUI to interact with your code. There should be an available implementation in the Queue section.

Step 4 - ArrayQueue<E>

Finally, write a Queue using an array-based implementation.

Step 4.1 - Implementation

Your implementation will have three fields as discussed in class, a head index field and a size field, plus a generic array of type E elements. Create a new Class, implementing the Queue<E> interface and completing all of the necessary methods.

While the name of the file is ArrayQueue.java, the name of your class should be ArrayQueue<E>.

Your code needs to be efficient in terms of the space used. You should treat your array of elements as a circular array, and only resize the array when all positions are full of valid elements in the queue.

The capacity of the Array implementations is the length of the array used to store the elements.

Step 4.2 - Testing

Verify that your ArrayQueue is working with the ArrayQueueTest suite.

Step 4.3 - GUI

Run the GUI to interact with your code.

Step 5 - Evaluation

Create 10 mazes of size 30x30 and for each maze and strategy (Stack and Queue), record the number of visited nodes as a percentage of the total number of open spaces in the initial maze. You can choose either implementation for each data type.

Use this data to compare the Stack versus Queue search strategies. Does either strategy have any clear strengths or weaknesses?

What to Hand In

Submit your ListNode.java, ListStack.java, ListQueue.java and ArrayQueue.java implementations, along with a document for your evaluation in Step 5.

Grading
